Electric Molded Case Circuit fifọ

Fifọ Circuit Case Electric Molded jẹ iru ohun elo itanna pẹlu awọn iṣẹ aabo bii apọju, Circuit kukuru ati labẹ foliteji. Ilana iṣẹ rẹ ni pe labẹ awọn ipo iṣẹ deede, olupilẹṣẹ Circuit wa ni ipo pipade, nigbati apọju Circuit, Circuit kukuru tabi labẹ foliteji ati awọn aṣiṣe miiran, fifọ Circuit yoo ge asopọ iyika naa laifọwọyi, nitorinaa lati daabobo Circuit ati aabo ohun elo naa.

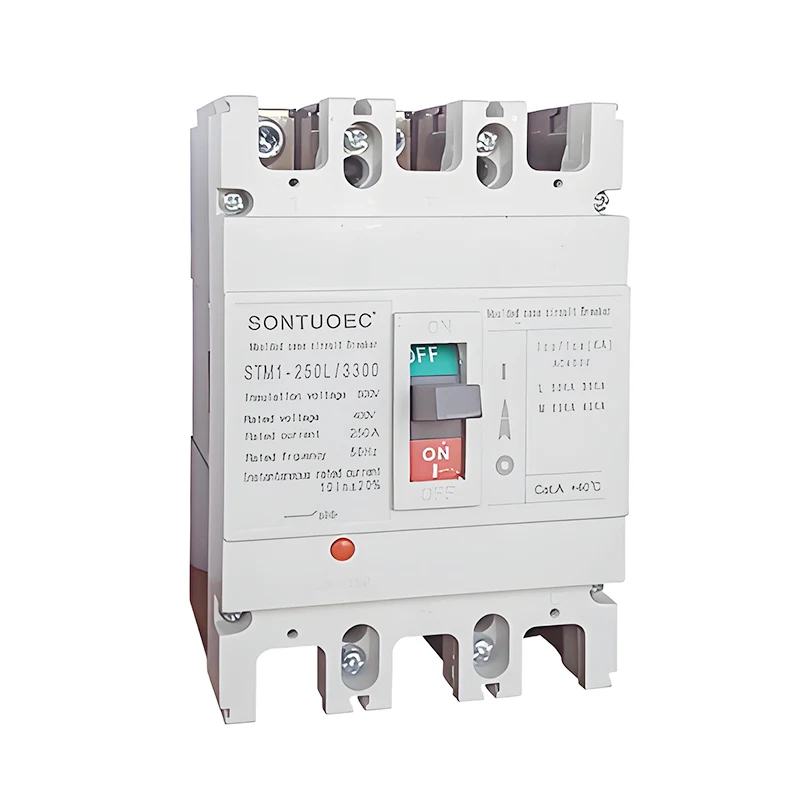

Awoṣe:STM1-250L

Fi ibeere ranṣẹ

ọja Apejuwe

Awoṣe		STM1-125			STM1-250			STM1-400			STM1-630			STM1-800			STM1-1250
Ti won won Cortirucus curert		125			250			400			630			800			1250
Ti won won Curert hn(A)		16,20,25,32,40.50			100,125,140,160,			250,315,350,400			400,500,630			630,700,800			80,010,001,250
		63,80,100,125			180,200,225.25
Ti won won awọn ọna Votage Ue(V)DC								500,550,7			501,000
Iwọn Isuation Votage UKV)		1000			1000			1500			1500			1500			1500
Uimp(KV)
Idanwo Votage One Miute(V)		3500			3500			3500			3500			3500			3500
Agbara Pipin (KA)		L	M	H	L	M	H	L	M	H	L	M	H	L	M	H	L	M	H
ku(1cs=75% ku)	250V	25	35	50	35	50	65	35	50	65	35	50	65	50	65	80	50	65	80
	500V	25	25	50	35	35	65	35	35	65	35	35	65	50	50	80	50	50	80
	750V	25	15	50	35	25	65	35	25	65	35	25	65	50	35	80	50	35	80
	1000V	25	10	50	35	15	65	35	15	65	35	15	65	50	20	80	50	20	80
Mechaarical He	Igba	7000			7000			4000			4000			2500			2000
Electric Life	Igba	2000			2000			1000			1000			800			600
Awọn akoko fifọ (ms)		20			20			20			20			20			20
Ibi fifi sori ẹrọ		Eyikeyi ibi
bolator agbara		beeni
Standard		IEC 60947-2, IEC60947-1, GB 14048, GB 14048-2
Iwọn otutu (C)		25℃-50℃
Idaabobo Degress		b20
Ẹya ẹrọ		TI/SD/MX
Ijinna Arcing(mm)		250

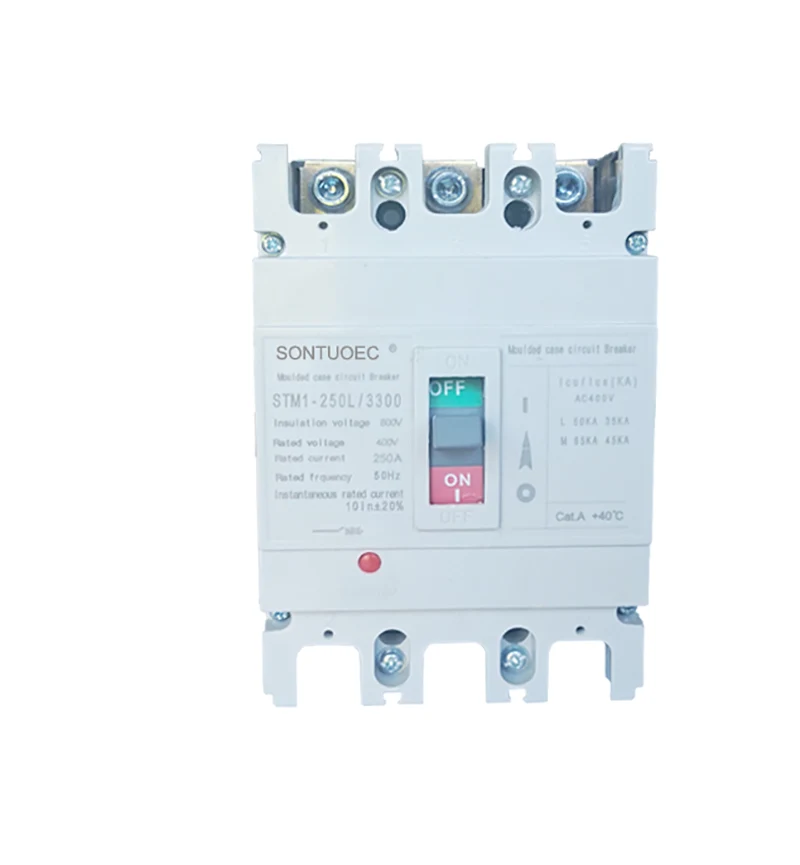

Awoṣe RARA.	STM1-250L / 3300
Arc-extinguishing Alabọde	Afẹfẹ
ITOJU:	IEC 60947-2
Ilana	MCCB
Iru	Moulede irú Circuit Fifọ
Ijẹrisi	CE
Awọn ifọwọsi	CE, ISO9001
Akoko Ifijiṣẹ	Ninu 20 ọjọ
Sipesifikesonu	63A-630A
Ipilẹṣẹ	Wenzhou Zhejiang
Agbara iṣelọpọ	2000pieces / ọsẹ
Iyara	Deede Iru Circuit fifọ
Fifi sori ẹrọ	Ti o wa titi
Ọpá Nọmba	3P 4P
Išẹ	Aṣa Ayika Circuit, Idaabobo Ikuna Ayika, Overcurrent Idaabobo
Iye owo	Ile-iṣẹ Iye owo
Akoko atilẹyin ọja	12 osu
Transport Package	Ti inu apoti / paali
Aami-iṣowo	SOTUOEC,WZSTEC,SONTUNE,IMDEC
HS koodu	8536200000

Ilana ati awọn abuda

Igbekale: ẹrọ fifọ iru ẹrọ fifọ ni itanna nigbagbogbo ni eto olubasọrọ, eto piparẹ arc, ẹrọ iṣẹ, ikọlu, ati ikarahun ati awọn ẹya miiran.

Awọn ẹya:

O ni agbara fifọ giga ati iduroṣinṣin igbona ti o dara.

Ikarahun naa jẹ ti ina-retardant, ohun elo idabobo arc, pẹlu iṣẹ aabo to gaju.

Ilana ti n ṣiṣẹ jẹ rọ ati igbẹkẹle, eyiti o rọrun fun awọn olumulo lati ṣiṣẹ pẹlu ọwọ tabi itanna.

Asopọmọra naa ni ọpọlọpọ awọn iṣẹ aabo, ati pe o le ṣe awọn iṣe ti o baamu ni ibamu si awọn aṣiṣe oriṣiriṣi ti Circuit naa.

Iṣẹ ati lilo

Iṣẹ: Apanirun Circuit ọran ti itanna ni ọpọlọpọ awọn iṣẹ aabo bii aabo apọju, aabo Circuit kukuru, labẹ aabo foliteji ati aabo jijo. Lara wọn, idabobo apọju tumọ si pe nigbati Circuit ba ti pọ ju, ẹrọ fifọ le ge asopọ Circuit laifọwọyi lati yago fun ohun elo lati bajẹ nitori igbona gbona; Idaabobo kukuru-kukuru tumọ si pe nigbati akoko kukuru ba waye ninu Circuit, ẹrọ fifọ le yarayara ge aṣiṣe aṣiṣe lati dena ina ati awọn ijamba ailewu miiran; Idaabobo undervoltage tumọ si pe nigbati foliteji ipese agbara ba kere ju iye ti a ṣe iwọn, ẹrọ fifọ le ge asopọ Circuit laifọwọyi lati daabobo ohun elo lati bajẹ; ati aabo jijo tumo si wipe nigbati a jijo waye ninu awọn Circuit, awọn Circuit fifọ le ti akoko ge awọn ipese agbara lati dabobo ara ẹni aabo. Idaabobo jijo tumọ si pe ẹrọ fifọ Circuit le ge ipese agbara kuro ni akoko nigbati jijo ba wa ninu Circuit lati daabobo aabo ara ẹni.

Awọn ipalọlọ: Awọn fifọ Circuit ọran ti o ni itanna jẹ lilo pupọ ni awọn eto itanna ni ibugbe, iṣowo, ile-iṣẹ ati awọn aaye gbigbe. Ni aaye ibugbe, a lo lati daabobo aabo ti awọn iyika ile ati ohun elo itanna; ni aaye iṣowo, a lo lati daabobo awọn ọna itanna ti awọn ile nla ati awọn agbegbe iṣowo; ni aaye ile-iṣẹ, o ti lo lati ṣakoso ati daabobo iṣẹ ailewu ti ohun elo ile-iṣẹ ati awọn ẹrọ; ni aaye gbigbe, o ti lo lati daabobo iṣẹ iduroṣinṣin ti awọn imọlẹ opopona, awọn ami oju opopona ati awọn ohun elo miiran.
