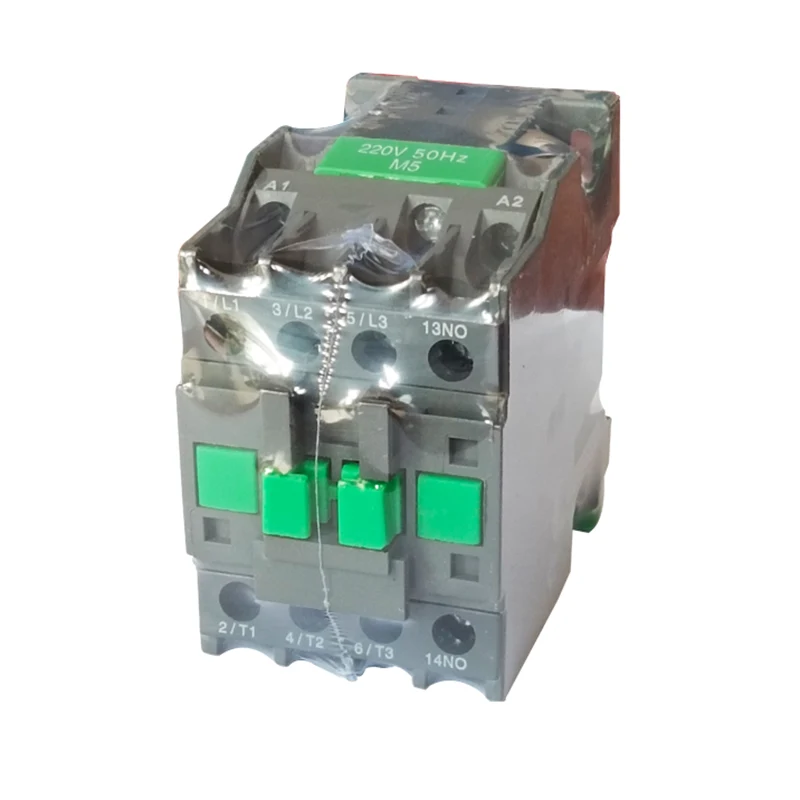

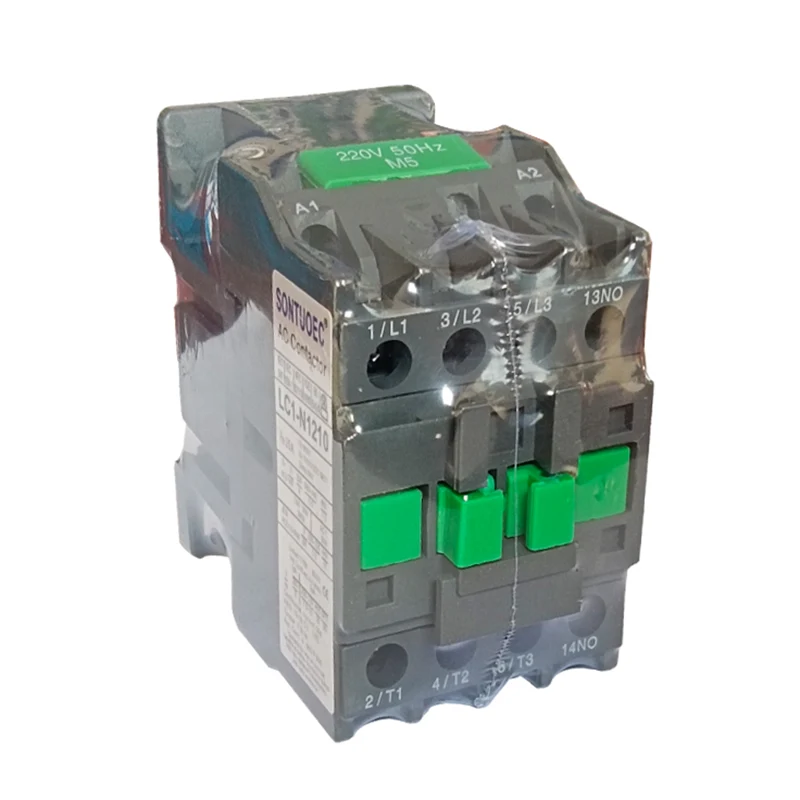

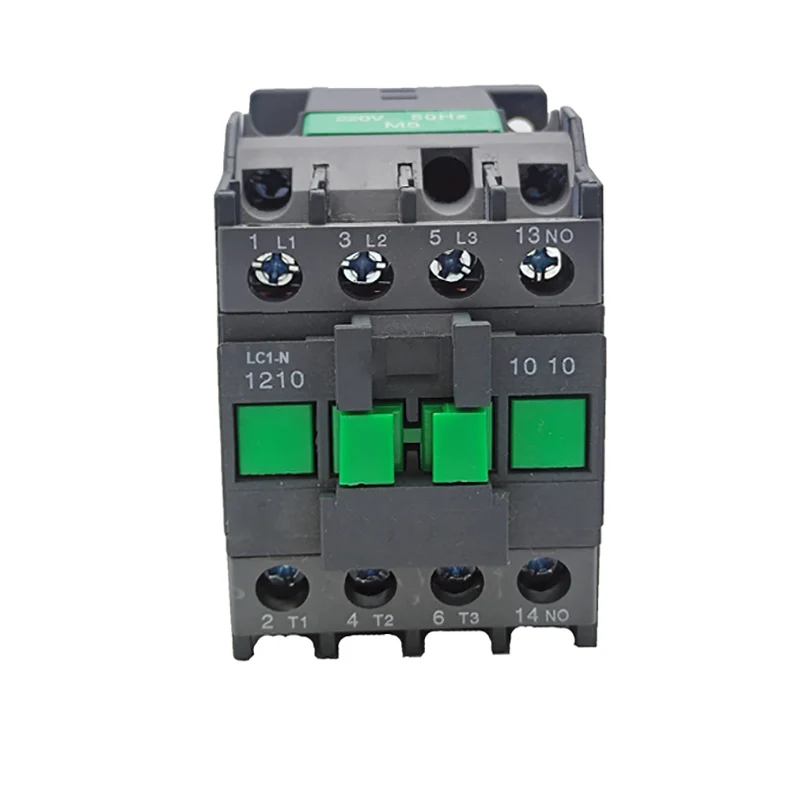

LC1-n Iru AC CROTER

Awọn ipin-iwe ACC-----ti LC1-n ko dara fun lilo ninu awọn iyika pẹlu ac 50hz tabi 60hzs to 660V (to 690v fun diẹ sii awọn awoṣe) ati awọn iwe-aṣẹ to 95a. O ti lo fun sisopọ ati awọn iyika fifọ lori awọn ijinna gigun, bi lilo nigbagbogbo ati ṣiṣakoso ac Motor.

Awoṣe:LC1-N1210

Fi ibeere ranṣẹ

ọja Apejuwe

Tẹ		Lci-n09	LC1-N12	LC1-N18	LC1-N25	LC1-N32	LC1-N40	LC1-N50	LC1-N65	LC1-N80	LC1-N95
Ti o ni ilọsiwaju ṣiṣẹ lọwọlọwọ (a)	Ac3	9	12	18	25	32	40	50	65	80	95
Ti o ni ilọsiwaju ṣiṣẹ lọwọlọwọ (a)	Ac4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Awọn oṣuwọn ilana ti 3-alakoso Motors 50 / 60hs Invest Ingon AC-3	220 / 230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380 / 400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500	5.5	7.5	10	15	18.5	22	30	37	55	55
	660 / 690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Ti a ni iṣiro oniruru lọwọlọwọ (a)		20	20	32	40	50	60	80	80	125	125
Igbesi aye itanna	Ac3 (x104)	100	100	100	100	80	80	60	60	60	60
Igbesi aye itanna	AC4 (X104)	20	20	20	20	20	15	15	15	10	10
Igbesi aye ẹrọ (X104)		1000	1000	1000	1000	800	800	800	800	600	600
Nọmba ti awọn olubasọrọ	3p + Bẹẹkọ					3p + NC + Bẹẹkọ
Nọmba ti awọn olubasọrọ	3p + NC					3p + NC + Bẹẹkọ

Awọn ẹya ara ẹrọ

Apẹrẹ itunro: LC1-n Iru Ac Compantor Titẹ Onisomọ Iṣeduro Pataki, eyiti o rọrun fun awọn olumulo lati yan ati pepọ ni ibamu si awọn aini wọn.

Eto itanna: pẹlu alabaṣiṣẹpọ itanna ati ọran irin, eyiti o jẹ apakan pataki ti olutaja, gbekele rẹ lati wakọ pipade ati kikopa sipo awọn olubasọrọ.

Eto olubasọrọ: pẹlu olubasọrọ akọkọ ati olubasọrọ aipe. A lo olubasọrọ akọkọ lati sopọ ati fọ Circuit akọkọ ki o ṣakoso lọwọlọwọ lọwọlọwọ; Olubasọrọ alailopin wa ninu Circuit iṣakoso lati ba awọn ibeere ti awọn ọna iṣakoso oriṣiriṣi.

Ipele jicingtuay Anc: Ni ipese pẹlu ẹrọ ijade ARC kan, gbogbo awọn olubasọrọ ti o lagbara ni pipade gigun ti o jẹ igbẹkẹle nipasẹ Apanirun ACC ti o jẹ igbẹkẹle, dinku ibajẹ ariyanjiyan si awọn olubasọrọ.

Opo ti iṣẹ

Nigbati awọn Circuit iṣakoso jẹ imuwọn, awọn okun didi elege n ṣe ifamọra aaye oofa, eyiti o ṣe ifamọra aaye oofa lati wakọ awọn olubasọrọ naa, nitorinaa sisopọ Circuit akọkọ ti compressor. Nigbati Circuit iṣakoso jẹ De-Wọnrerlerized, oju-oofa magring parẹ, irin-ajo irin ti o wa labẹ iṣẹ ti orisun omi, ati yika akọkọ ti compressor duro.
