Sontuoec giga ẹrọ elekitiro itanna ti wa ni o kun ninu awọn iyika ti o jẹ iwọn folti to 660V, ti a ṣe deede, fun ṣiṣe nigbagbogbo, bẹrẹ nigbagbogbo ati ṣiṣakoso ak motor. Ni idapo pẹlu bull bulls, Iṣeduro Ọna & Ẹrọ-iwe, o di oluyẹwo idaduro, Olumulo Metaching, Starter StarSta. O yipada sinu ibẹrẹ eka elekitiro nigbati o ba ṣiṣẹ papọ pẹlu gbigbemo igbona ti o baamu kan, eyiti o le daabobo ipin owo. Olupilẹṣẹ ni iṣelọpọ ni ibamu si iC60947-4-1.

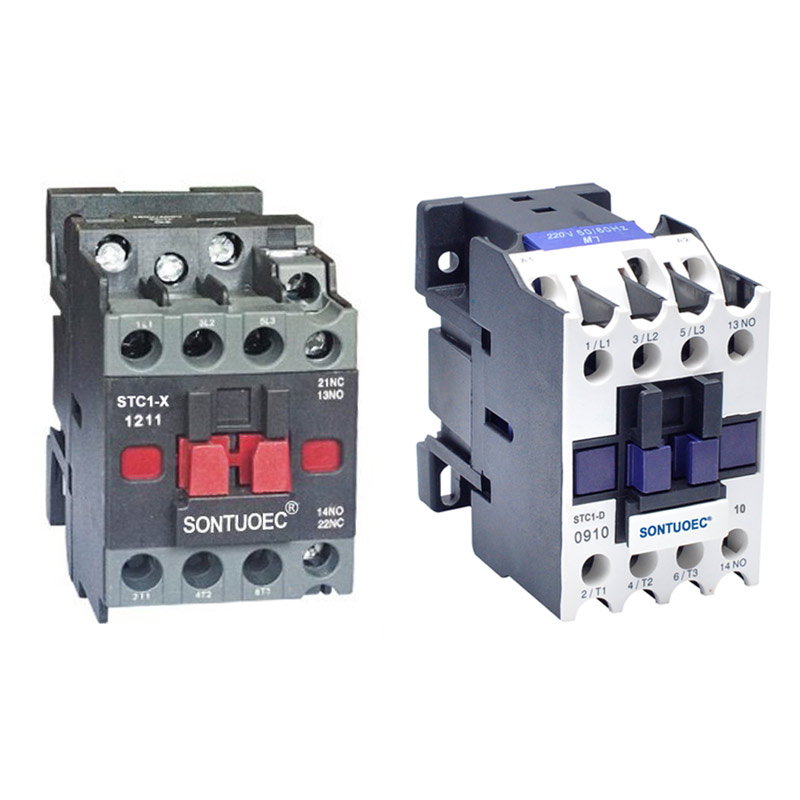

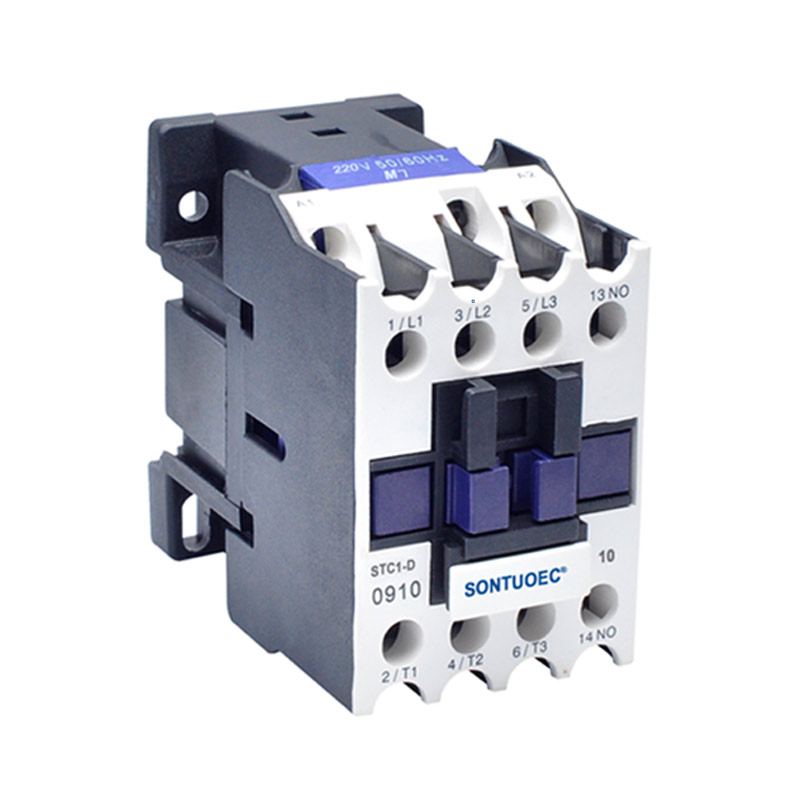

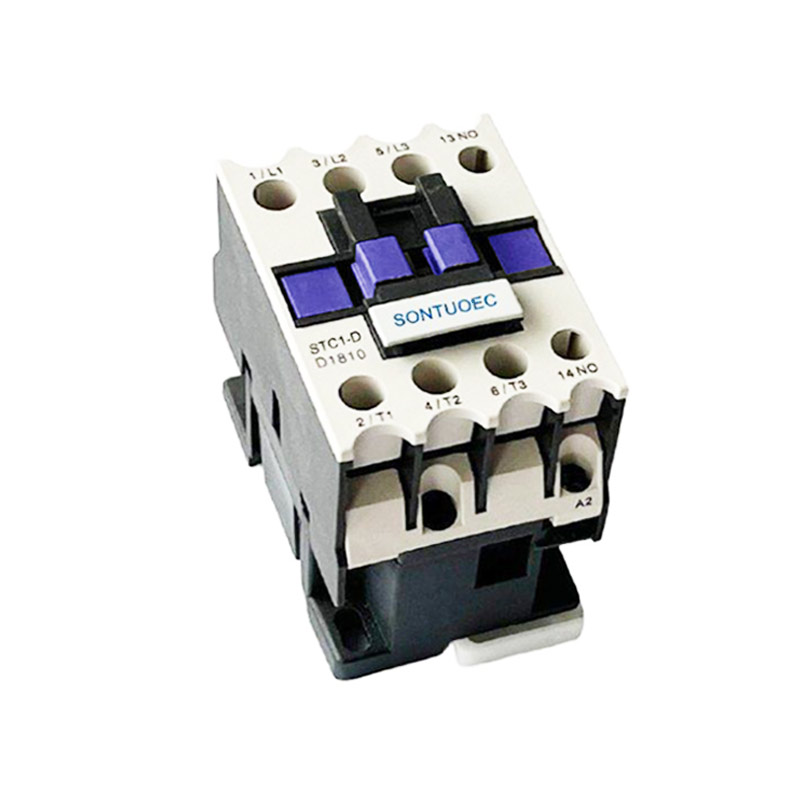

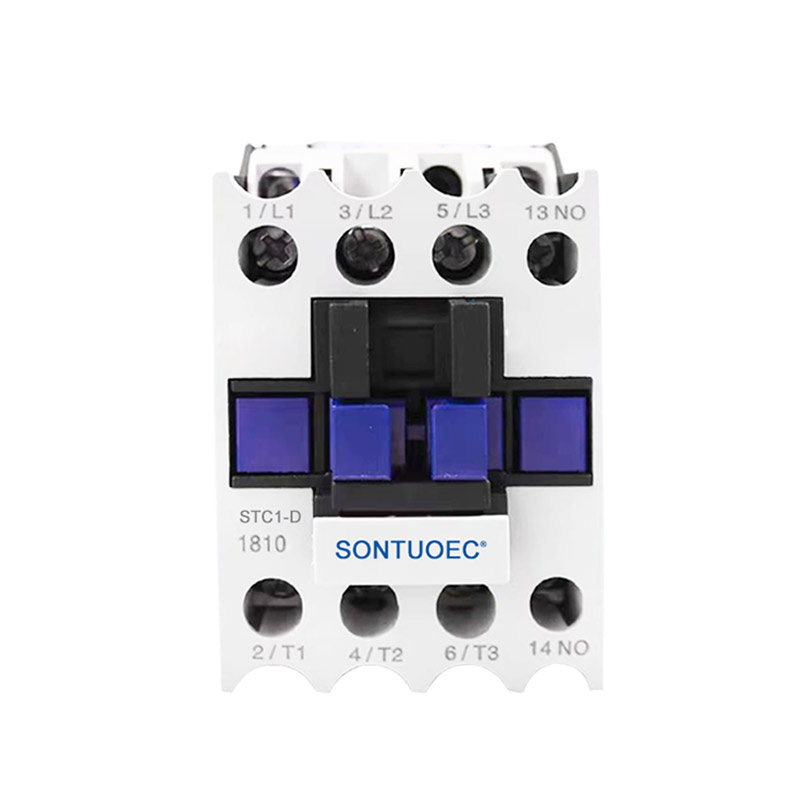

Awoṣe:STC1-D

Fi ibeere ranṣẹ

ọja Apejuwe

Tẹ		Stc1-D09	Stc1-D12	STC1-D18	Stc1-D25	Stc1-D32	Stc1-D40	Stc1-D50	Stc1-D65	Stc1-D80	Stc1-D95
Ti o ni ilọsiwaju ṣiṣẹ lọwọlọwọ (a)	Ac3	9	12	18	25	32	40	50	65	80	95
Ti o ni ilọsiwaju ṣiṣẹ lọwọlọwọ (a)	Ac4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Iwọn agbara agbara boṣewa 3-phasi ogbon 50 / 60hz ni ẹka AC-3	220 / 230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380 / 400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500	5.5	7.5	10	15	18.5	22	30	37	55	55
	660 / 690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Ti a ni iṣiro oniruru lọwọlọwọ (a)		20	20	32	40	50	60	80	80	125	125
Igbesi aye itanna	Ac3 (x104)	100	100	100	100	80	80	60	60	60	60
Igbesi aye itanna	AC4 (X104)	20	20	20	20	20	15	15	15	10	10
Igbesi aye ẹrọ (X104)		1000	1000	1000	1000	800	800	800	800	600	600

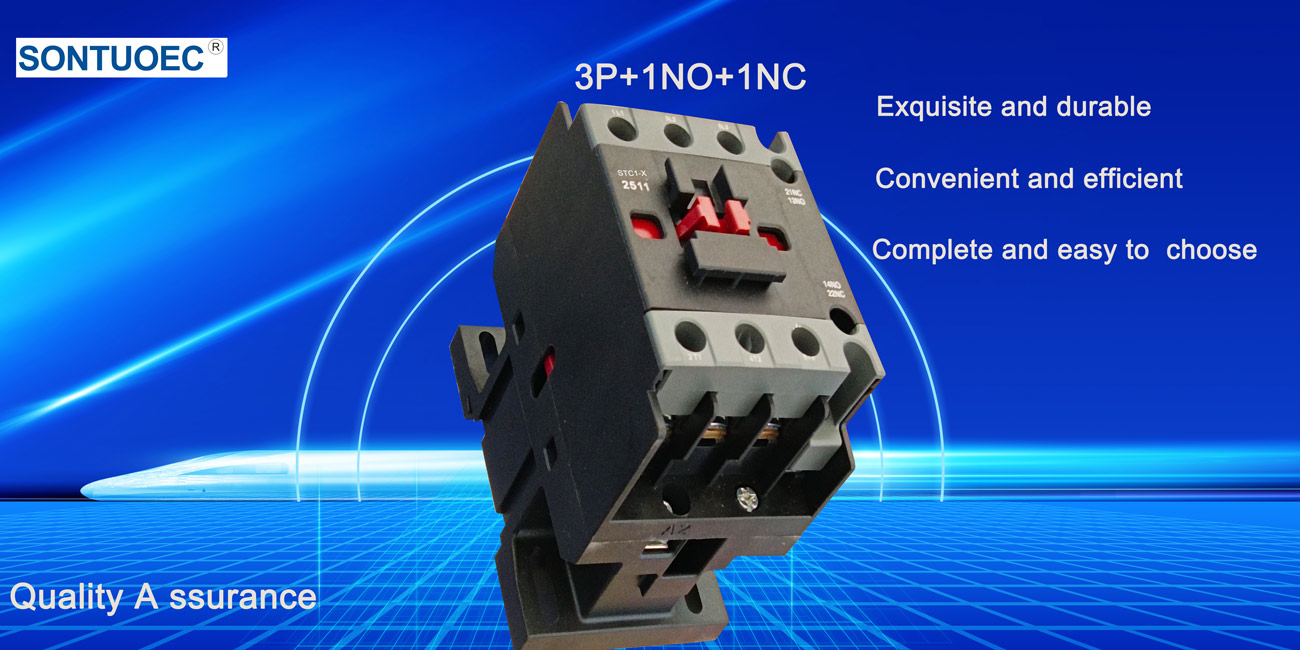

Nọmba ti awọn olubasọrọ	3p + Bẹẹkọ					3p + NC + Bẹẹkọ

Awọn ẹya Ọja

Iṣẹ giga: Awọn oluso ẹrọ itanna jẹ apẹrẹ lati jẹ kere julọ, ina kekere, ati awọn iwontunpo ti o ni iṣiro to 500 ° C) ati agbara ikojọpọ ti 2000ya (ni 320vdc).

Agbara lilo: Inte-in Ipamọ Agbara Ṣiṣẹ nikan ni agbara 1.7W Agbara Agbara (ni 12vdc) ati pe o le ṣe idinwo agbara elekitiro iyipada (EMF) si 0v.

Aabo: Ọja naa ni edidi hermetically fun aabo iṣan o le ṣiṣẹ ni awọn ẹru tabi ibajẹ ti o ni agbara tabi idiwọn ti ko ni agbara.

Isopọ: Awọn olubasọrọ alaifọwọyi ti wa ni ipese fun ibojuwo irọrun ti ipo awọn olubasọrọ agbara. Tun ẹya awọn asopọ rọpọ / agbara agbara.

Awọn iṣẹlẹ ohun elo

A lo awọn iwe afọwọkọ awọn itanna ni ọpọlọpọ awọn ohun elo, pẹlu ṣugbọn ko ni opin si:

Awọn ọna batiri: pataki julọ dara fun agbegbe European (EC) nibiti aami isamisi wa ni beere.

Idaabobo Idaabobo ati yi pada: gẹgẹbi yi pada ati afẹyinti ti awọn relays (bii agbara agbara DC, aabo aabo, aabo Circuit, ati aabo ninu apẹrẹ Aiing QSS9000.

Awọn ohun elo ile-iṣẹ Miiran: Paapaa fun adaṣe, Aerostopace Awọn nẹtiwọọki, Awọn nẹtiwọọki ibaraẹnisọrọ, awọn itanna alabara, iṣoogun ati agbara.
