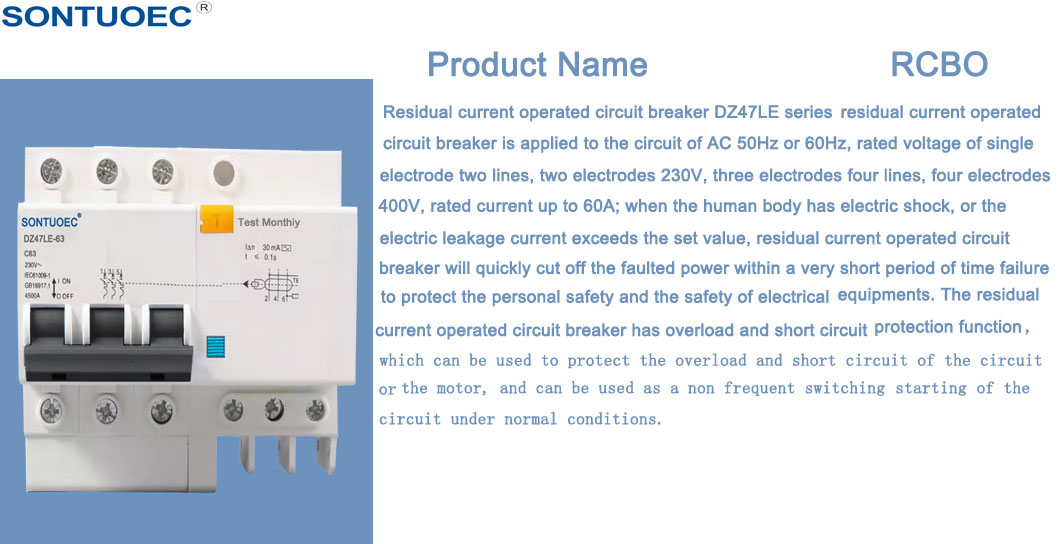

Dz47le-63 Series Iṣọkan Irisi Iwon Circuit Fifọ RCBO

1.RCBO jẹ lilo ni pataki ni AC 50Hz(60Hz), foliteji ti a ṣe iwọn 230/400V, ti a ṣe iwọn 6A lọwọlọwọ si 63A eto pinpin ebute foliteji kekere. RCBO jẹ dogba pẹlu iṣẹ MCB + RCD; O ti wa ni lilo fun idabobo mọnamọna ina ati aabo olubasọrọ aiṣe-taara eniyan, Idaabobo ohun elo itanna nigbati ara eniyan ba kan ina tabi nẹtiwọọki nẹtiwọọki lọwọlọwọ n jo iye ti a ti pinnu, ati lori ẹru ati aabo iyika kukuru; O tun le jẹ onišẹ ti kii ṣe loorekoore ni agbegbe, ti a lo ni ilodi si ni ibugbe ati agbegbe iṣowo. O ni ibamu pẹlu bošewa ti IEC61009-1. 2.MCB ṣe ni AC50/60Hz, foliteji ti 230V3, awọn opo 4 400V, ti a ṣe iwọn lọwọlọwọ si 63A fun apọju ati aabo kukuru bi daradara bi fun iyipada loorekoore labẹ ọran deede.O ti lo lọpọlọpọ fun ile-iṣẹ, iṣowo ati idile. Ọja yii ṣe deede si boṣewa IEC60898. 3.RCCB wa ni ibamu pẹlu awọn ajohunše ti IEC61008.It le ge si pa awọn ẹbi Circuit lẹsẹkẹsẹ lori ayeye ti mọnamọna ewu tabi aiye jijo ti trunkline.Thus o jẹ dara lati yago fun awọn mọnamọna ewu ati iná ṣẹlẹ nipasẹ aiye leakage.It le ṣee lo ni iyika soke si nikan alakoso 240V,V0 alakoso 415.

Awoṣe:DZ47LE-63

Fi ibeere ranṣẹ

ọja Apejuwe

Awọn pato:

RCBO

	Standard	Ẹyọ	IEC / EN 61009-1
Itanna	Ipo		Itanna iru
awọn ẹya ara ẹrọ	Iru (fọọmu igbi ti jijo ilẹ-aye ni oye)		A, AC
	Thermo-oofa Tu ti iwa		B,C,D
	Ti won won lọwọlọwọ ln	A	6,10,16,20,25,32,40,63
	Awọn ọpá	P	1P+N, 3P+N
	Ti won won foliteji Ue	V	AC 230,400
	Ti won won ifamọ I△n	A	0.01, 0.03, 0.1, 0.3, 0.5
	Ti ṣe iwọn iṣẹku ati agbara fifọ l△	A	500
	Ti won won kukuru-Circuit agbara Icn	A	6000
	Akoko isinmi labẹ I△n	S	≤0.1
	Iwọn igbohunsafẹfẹ	Hz	50/60
	Ti won won impulsewithstand foliteji (1.2/50) Uimp	V	4000
	Dielectric igbeyewo foliteji ni ind.Freq fun 1min	kV	2
	Foliteji idabobo Ui	V	250
	Idoti ìyí		2
Darí awọn ẹya ara ẹrọ	Itanna aye		4000
	Igbesi aye ẹrọ		10000
	Atọka lọwọlọwọ aṣiṣe		BẸẸNI
	Idaabobo ìyí		IP20
	Ibaramu otutu	ºC	-5 ~ + 40 (Ohun elo pataki jọwọ tọka si
	(pẹlu apapọ ojoojumọ≤35ºC)	ºC	atunṣe iwọn otutu)
	Ibi ipamọ otutu	ºC	-25 ~ +70
Fifi sori ẹrọ	Ebute asopọ iru		Cable/Pin-Iru busbar / U-Iru busbar
	Iwọn ebute oke / isalẹ fun USB	mm2	25
	Iwọn ebute oke / isalẹ fun USB	AWG	5月18日
	Ebute iwọn oke/isalẹ fun busbar	mm2	25
	Ebute iwọn oke/isalẹ fun busbar	AWG	3月18日

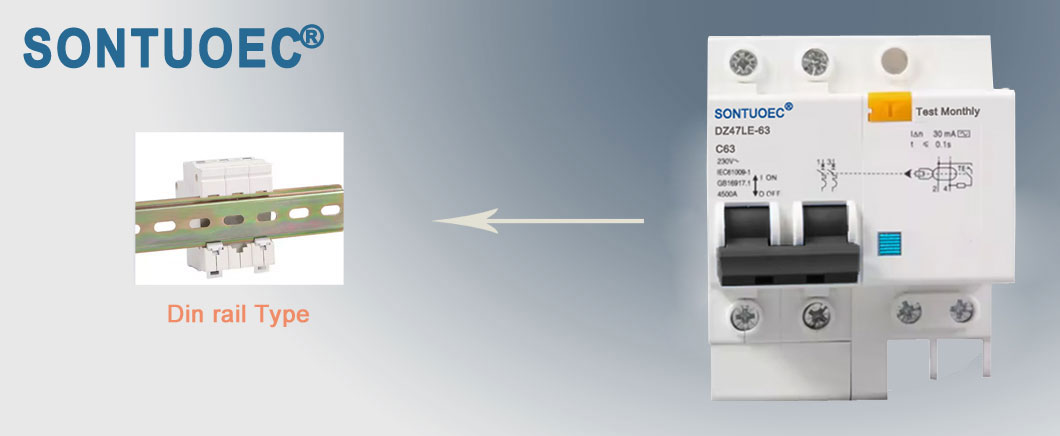

	Iṣagbesori		Lori DIN iṣinipopada EN 60715 (35mm) nipasẹ ẹrọ agekuru yara
	Asopọmọra		Lati oke

Iwoye lori ipa ọna:

1. Pese aabo lodi si aṣiṣe aiye / jijo lọwọlọwọ ati iṣẹ ti ipinya

2. Ga kukuru-Circuit lọwọlọwọ withstand agbara3. Kan si ebute ati pin / orita iru busbar asopọ

5. Ge asopọ iyika naa ni aifọwọyi nigbati aiṣedeede aiye / jijo lọwọlọwọ ba waye ati pe o kọja ifamọ ti a ṣe.

6. Ominira ti ipese agbara ati foliteji laini, ati ominira lati kikọlu ita, iyipada foliteji.

MCB

Awoṣe	MCB
Standard	IEC60898-1
Ọpá	1P,2P,3P,4P
Tripping Curve	B,C,D
Ti won won agbara-yika kukuru(Icn)	3KA,4.5KA,6KA,10KA
Ti won won Lọwọlọwọ(Ni)	1,2,4,6,10,16,20,25,32,40,50,63A
Foliteji Ti won won (Un)	AC230 (240) / 400 (415) V
Awọn idasilẹ oofa	B ìsépo: laarin 3 ati 5 In
	B ìsépo: laarin 3 ati 5 In
	C ekoro: laarin 5 ati 10 In
	C ekoro: laarin 5 ati 10 In
	D ekoro: laarin 10 ati 14In
	D ekoro: laarin 10 ati 14In
Electro-darí ìfaradà	lori 6000 cyclesC

RCCB


	Standard	Ẹyọ	IEC / EN 61008-1
Itanna	Iru (fọọmu igbi ti jijo ilẹ-aye ni oye)		AC, A
Ẹya ara ẹrọ	Ti won won lọwọlọwọ Ni	A	16,25,32,40,63
	Awọn ọpá	P	2,4
	Ti won won foliteji Ue	V	230/400
	Ti won won ifamọ I n	A	0.01,0.03,0.1,0.3
	Foliteji idabobo Ui	V	500
	Ti won won péye sise ati	A	630
	agbara fifọ Mo m
	Kukuru-Circuit lọwọlọwọ I c	A	4500/6000
	SCPD fiusi	A	6000
	Akoko isinmi labẹ I n	s	<0.1
	Iwọn igbohunsafẹfẹ	Hz	50/60
	Idoti ìyí		2
MechanicaI	Itanna aye	t	4000
awọn ẹya ara ẹrọ	MechanicaI Ife	t	20000
	Atọka lọwọlọwọ		Bẹẹni
	Idaabobo ìyí		IP20
	Ibaramu otutu	C	Lati -25C si 40C
	(pẹlu apapọ ojoojumọ 35)
	Ibi ipamọ otutu	C	Lati -25C si 70C
