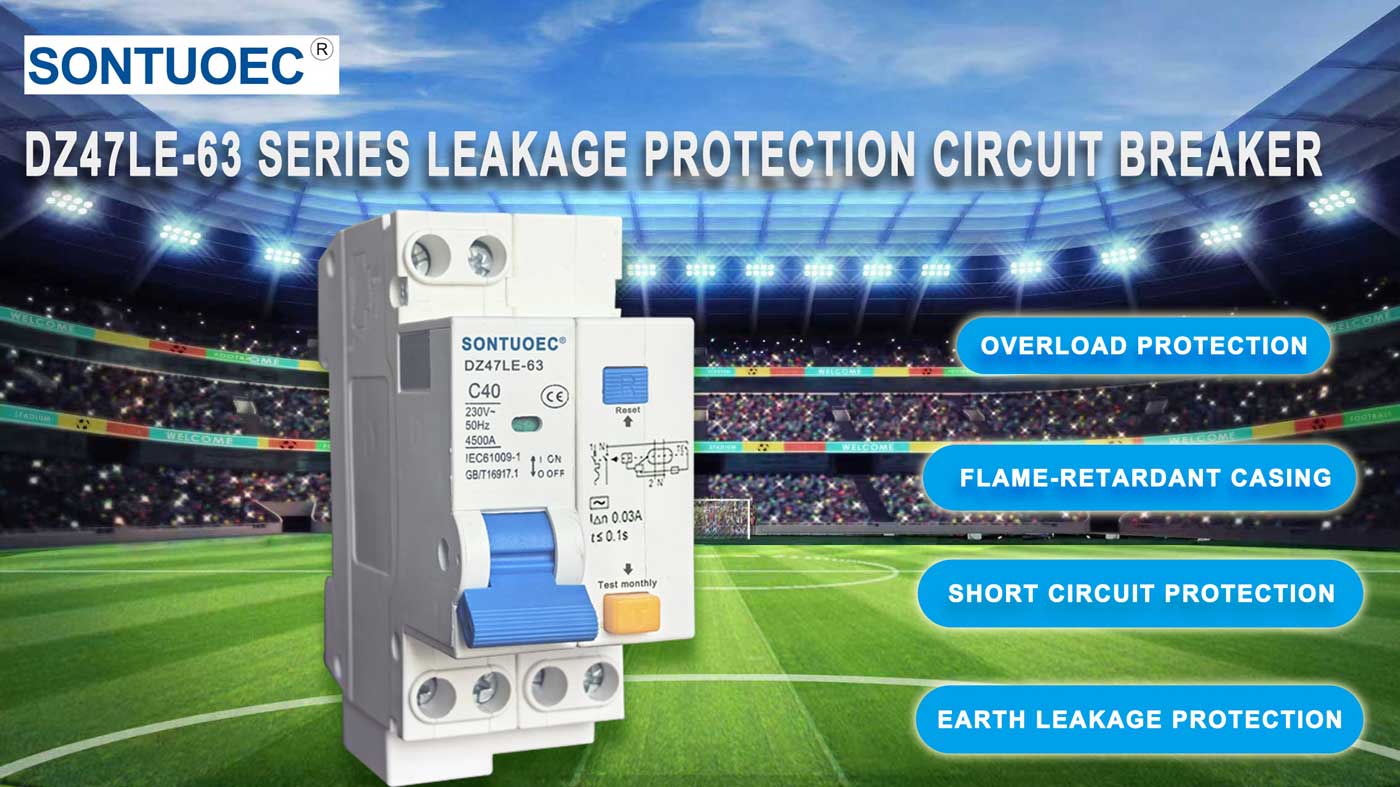

Dz47le-63 RCBO Series Leakage lọwọlọwọ Circuit fifọ

SONTUOEC jẹ ọkan ninu awọn olutaja/awọn oluṣelọpọ Kannada ti o ṣe amọja ni iṣelọpọ ọpọlọpọ awọn ohun elo itanna kekere.DZ47LE wulo si laini AC 50/60Hz ti a ṣe iwọn voltage 230V fun pole kan meji wire, 2 pole tabi 430Vre. 4 polu ati ti wọn si lọwọlọwọ titi di 63A. O le daabobo laini ati moto ninu apọju ati yika kukuru O tun ṣe lo fun iyipada laini loorekoore ati ọkọ ibẹrẹ loorekoore.O ṣe deede pẹlu awọn iwọn IEC61009.1.

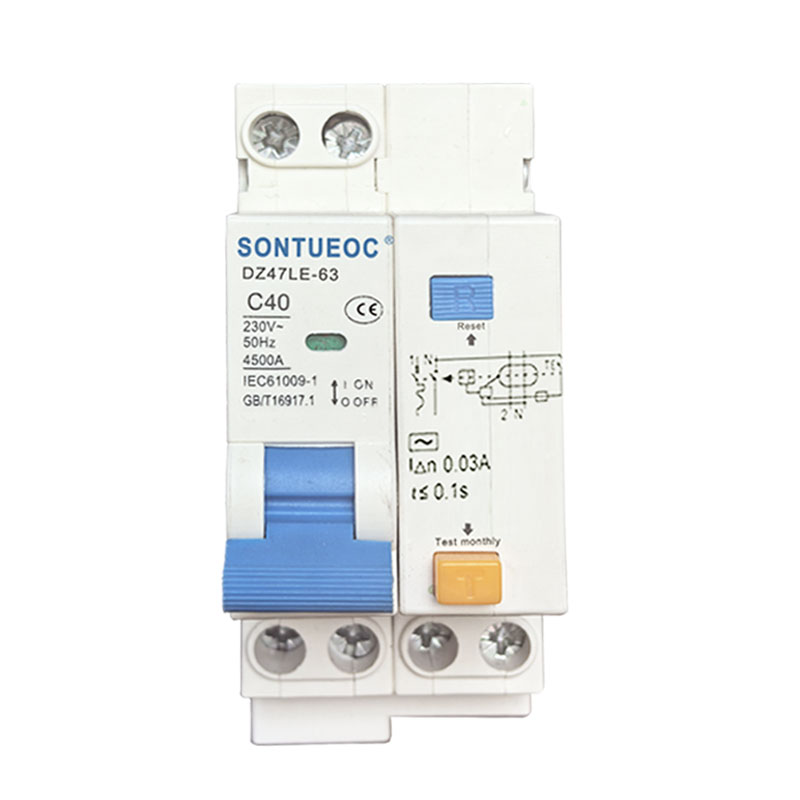

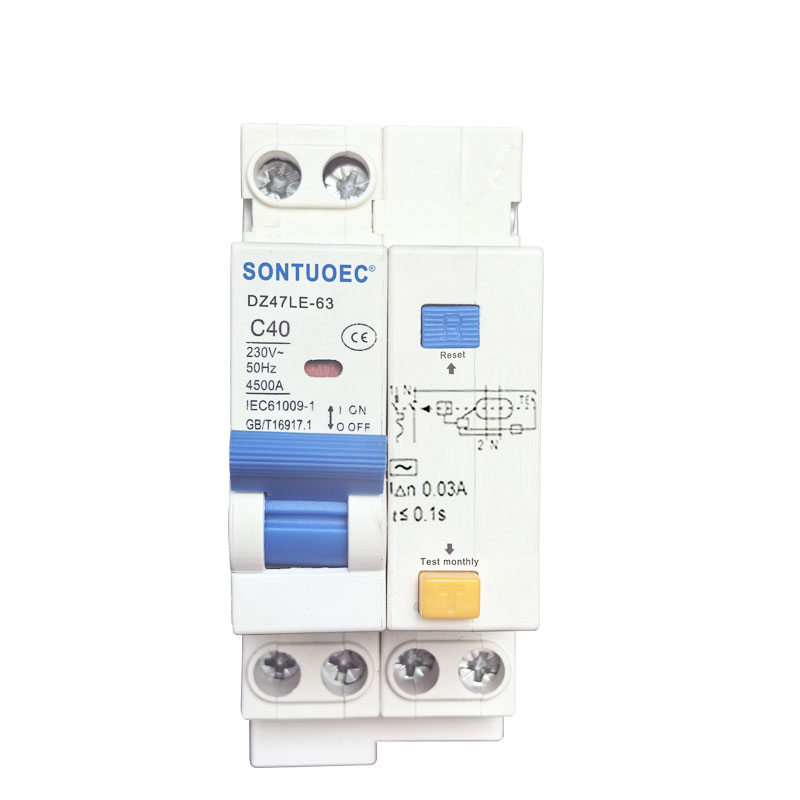

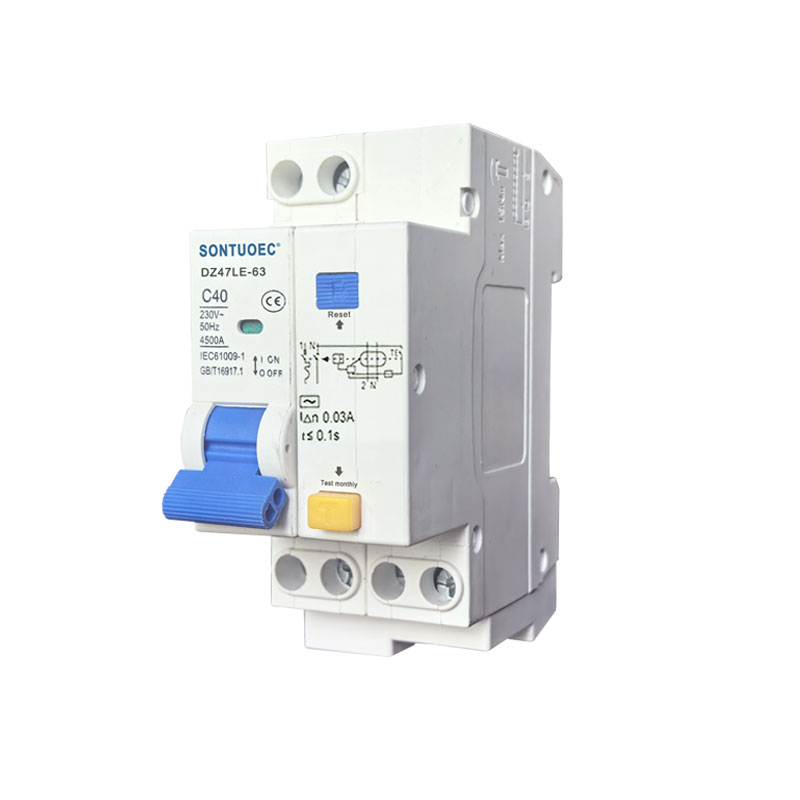

Awoṣe:DZ47LE-63

Fi ibeere ranṣẹ

ọja Apejuwe

Awọn paramita Imọ-ẹrọ:

Iwọn Foliteji (V)	Ti won won Lọwọlọwọ ti Case Inm(A)	Awọn ọpá	Neutra	Ti won won LọwọlọwọNi(A)	Ti won won Kukuru Circuit Fifọ Agbara Icu(KA)		Ti won won Lọwọlọwọ jijo Kikan Lọwọlọwọ	Ti won won Lọwọlọwọ kii ṣe Pipa lọwọlọwọ (mA)
Iwọn Foliteji (V)	Ti won won Lọwọlọwọ ti Case Inm(A)	Awọn ọpá	Ila	Ti won won LọwọlọwọNi(A)	Pipin Agbara Icu(KA)	COS	(mA))	Ti won won Lọwọlọwọ kii ṣe Pipa lọwọlọwọ (mA)
230	6-63	1	N	6,10,16,	6	0.7	30,50,	15,25,
230	6-63	2		20,25,32,	6	0.7	100,300	50.150
400	6-63	3		40,50,63	6	0.7
400	6-63	3	N		6	0.7
400	6-63	4			6	0.7
230	6-63	1	N		4.5	0.8
400	6-63	2			4.5	0.8
400	6-63	3			4.5	0.8
400	6-63	3	N		4.5	0.8
400	6-63	4			4.5	0.8

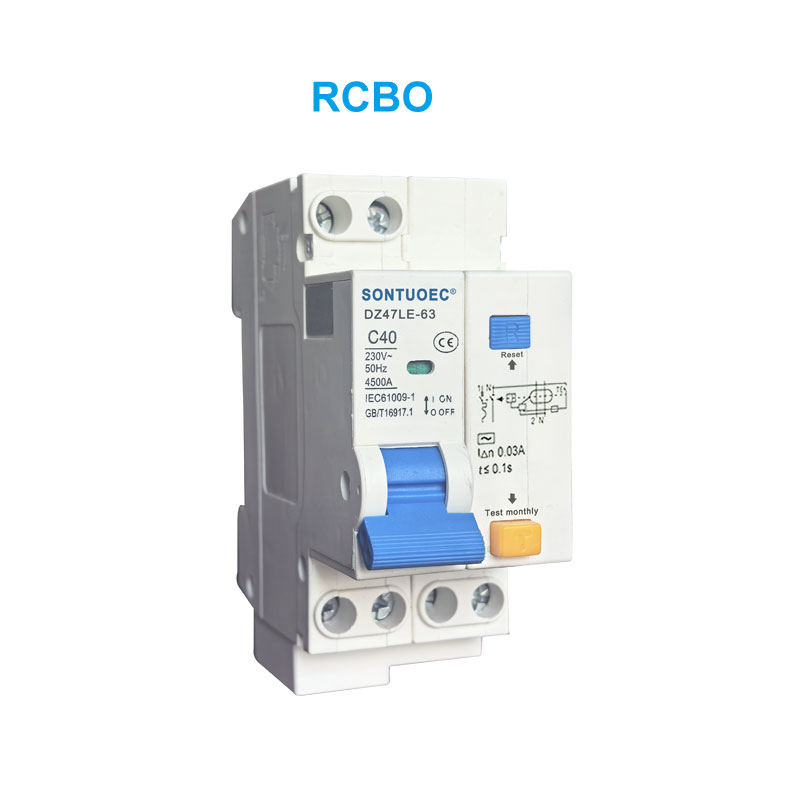

DZ47LE Aṣeku lọwọlọwọ Ṣiṣẹ Circuit fifọ pẹlu aabo lọwọlọwọ (itanna):

1. Ohun elo

Eniyan ati ina Idaabobo

USB ati laini Idaabobo lodi si apọju ati kukuru-iyika

2. Awọn ofin gbogbogbo fun yiyan RCBO:

a.Rated iṣẹku lọwọlọwọ

Ni ≤ 30 mA: aabo ni afikun ni ọran ti olubasọrọ taara Ni ≤300 mA: aabo aabo ina ni ọran ti awọn ṣiṣan ẹbi ilẹ

b.Tripping kilasi

AC kilasi – Tripping ti wa ni idaniloju fun sinusoidal, alternating sisanwo, boya ti won wa ni kiakia loo tabi laiyara mu.

c.Tripping ti tẹ

C ti tẹ (5-10 Ni) Idaabobo ati iṣakoso ti awọn iyika lodi si awọn apọju ati awọn ọna kukuru; aabo fun resistive ati inductive èyà pẹlu kekere inrush lọwọlọwọ.

D ekoro (10-14 Ni) Idaabobo ati iṣakoso ti awọn iyika lodi si apọju ati kukuru-iyika; Idaabobo fun awọn iyika eyiti o pese awọn ẹru pẹlu lọwọlọwọ inrush giga ni pipade Circuit (awọn oluyipada LV/LV, awọn atupa fifọ).
