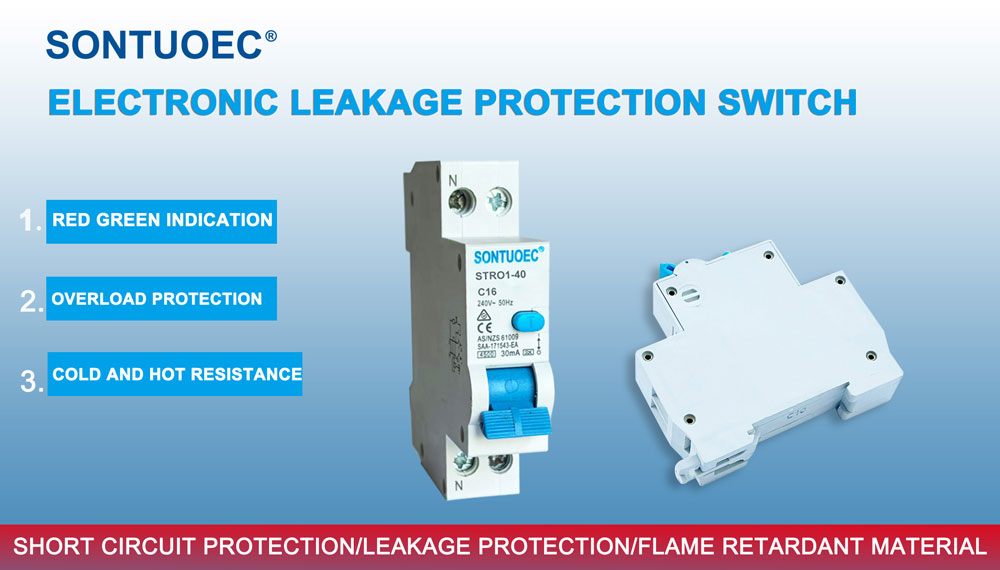

6ka Residual lọwọlọwọ Circuit fifọ Lori lọwọlọwọ Idaabobo RCBO

SONTUOEC jẹ ọkan ninu awọn olupese ti Ilu Kannada / awọn aṣelọpọ ti o ṣe amọja ni iṣelọpọ ti awọn oriṣiriṣi awọn ohun elo itanna kekere STRO1-40 RCBO, orukọ kikun ni Residual Current Circuit Breaker pẹlu Idaabobo Isọju. O jẹ ohun elo aabo itanna ti o ṣepọ idaabobo apọju, aabo kukuru kukuru ati idabobo jijo, ati pe a lo ni lilo pupọ ni awọn eto itanna ni ibugbe, iṣowo ati awọn agbegbe ile-iṣẹ lati rii daju aabo ti ara ẹni ati iṣẹ ailewu ti ẹrọ.STRO7-40 RCBO jẹ ohun elo aabo itanna pataki pẹlu apọju, kukuru kukuru ati aabo jijo. Nipa agbọye ilana iṣẹ rẹ, awọn abuda, awọn oju iṣẹlẹ ohun elo, ati yiyan ati awọn ọna fifi sori ẹrọ, o le dara julọ lo ati ṣetọju STRO7-40 RCBO lati rii daju iṣẹ ailewu ti awọn eto itanna.

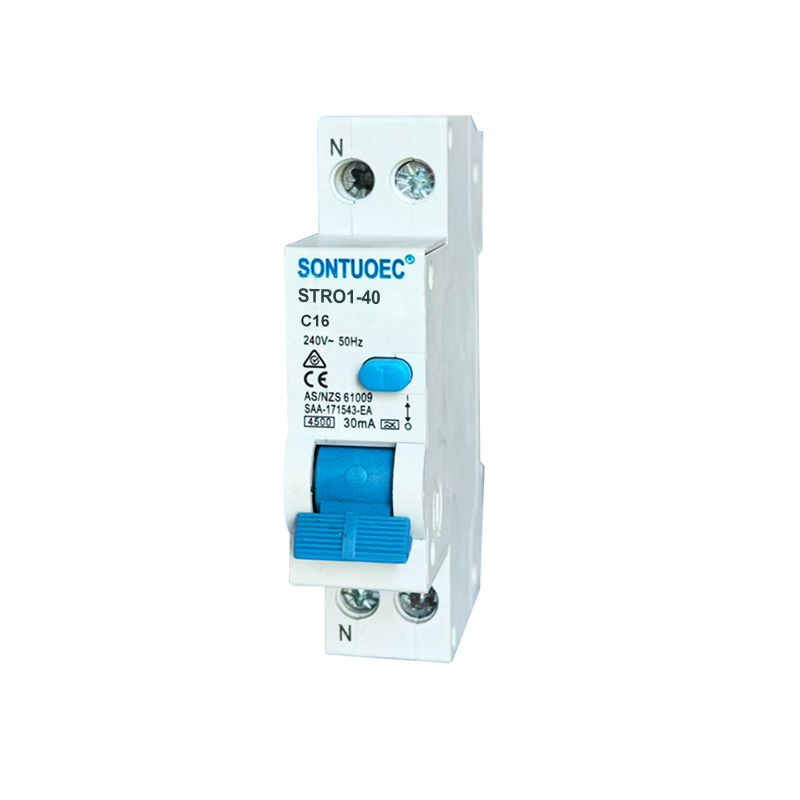

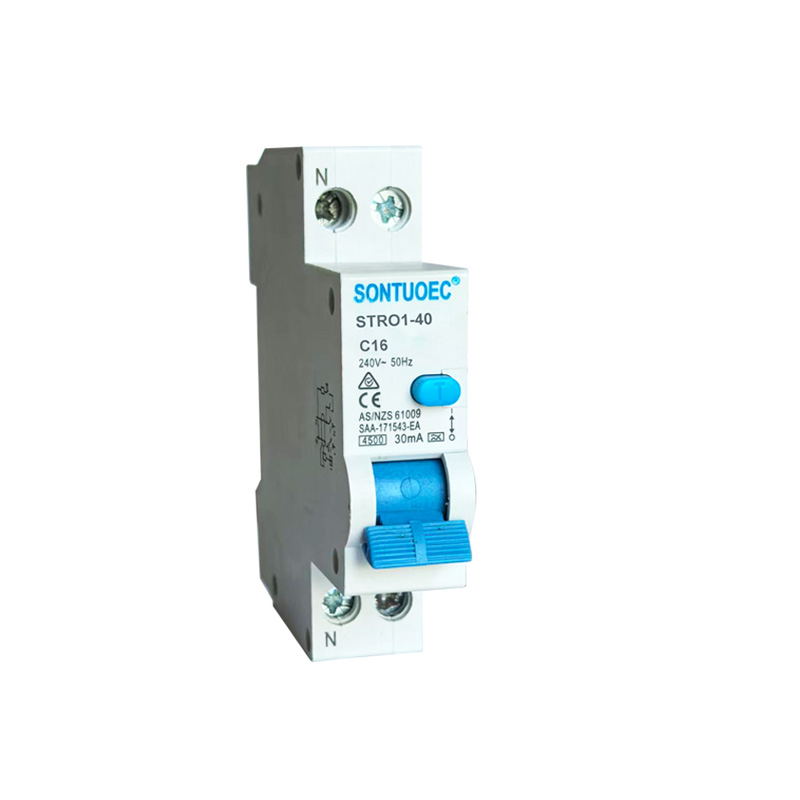

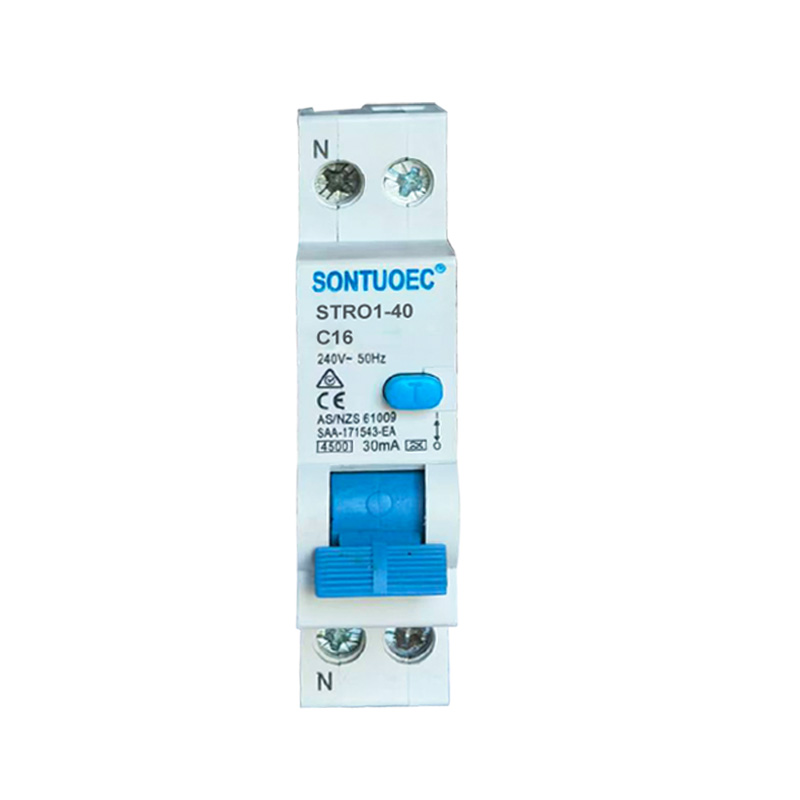

Awoṣe:STRO1-40

Fi ibeere ranṣẹ

ọja Apejuwe

Awọn pato:

Sandard			IEC / EN 61009-1
Itanna	Iru (fọọmu igbi ti jijo ilẹ-aye ni oye)		Itanna iru
awọn ẹya ara ẹrọ	Ti won won lọwọlọwọ Ni	A	A,AC

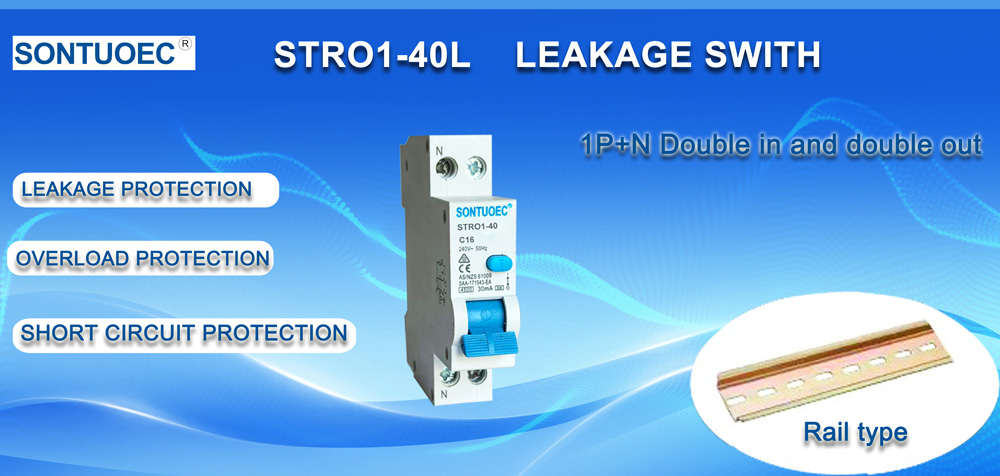

	Awọn ọpá	P	1P+N
	Ti won won foliteji	V	AC 230
	Ti won won Lọwọlọwọ:		6,10,16,20,25,32,40A
	Ti won won ifamọ I△n	A	0.01,0.03,0.1,0.3,0.5
	Foliteji idabobo Ui	V	250
	Ti won won péye sise ati	A	500
	agbara fifọ I△m	A	500
	I△C ti n lọ kiri-kukuru	A	45,006,000
	Iwọn igbohunsafẹfẹ	Hz	50/60
	Idoti ìyí		2
Ẹ̀rọ	Itanna aye	t	4000
awọn ẹya ara ẹrọ	Igbesi aye ẹrọ	t	10000
	Idaabobo ìyí		IP20
	Ibaramu otutu	ºC	-25 ~ +40
	(pẹlu apapọ ojoojumọ ≤35ºC)	ºC	-25 ~ +40
	Ibi ipamọ otutu	ºC	-25 ~ +70
Fifi sori ẹrọ	Ebute asopọ iru		Cable / U-Iru busbar / pin-Iru busbar
	Ebute iwọn oke / isalẹ fun USB	mm2	25
	Ebute iwọn oke / isalẹ fun USB	AWG	18-5
	Ebute iwọn oke/isalẹ fun busbar	mm2	25
	Ebute iwọn oke/isalẹ fun busbar	AWG	18-3
	Iṣagbesori		Lori DIN iṣinipopada EN 60715 (35mm) nipasẹ ẹrọ agekuru yara
	Asopọmọra		Lati oke ati isalẹ

Awọn iṣẹ akọkọ ti STRO1-40 RCBO

Idaabobo Apọju: Nigbati lọwọlọwọ ninu Circuit naa ba kọja iye ti a ṣe ayẹwo ti STRO1-40 RCBO, yoo ge Circuit kuro laifọwọyi laarin akoko ti a ṣeto lati ṣe idiwọ Circuit ati ohun elo lati igbona pupọ, nitorinaa yago fun ina ati ibajẹ.

Idaabobo kukuru kukuru: Nigbati Circuit kukuru ba waye ninu Circuit kan, STRO1-40 RCBO yoo yara ge Circuit kuro lati ṣe idiwọ kukuru kukuru lọwọlọwọ lati fa ibajẹ nla si Circuit ati ẹrọ.

Idaabobo jijo: STRO1-40 RCBO ni agbara lati ṣe awari lọwọlọwọ lọwọlọwọ (ie, lọwọlọwọ jijo) ni Circuit kan. Nigbati lọwọlọwọ ti o ku ba kọja iloro ti a ṣeto, STRO1-40 RCBO yoo ge Circuit kuro ni igba kukuru pupọ lati yago fun awọn ijamba elekitiro ati ina.

Ilana ti isẹ ti STRO1-40 RCBO

STRO1-40 RCBO ni aṣawari irin-ajo oofa gbona inu inu (fun apọju ati aabo Circuit kukuru) ati aṣawari lọwọlọwọ ti o ku (fun aabo jijo). Nigba ti isiyi tabi aloku lọwọlọwọ ninu awọn Circuit jẹ ajeji, awọn ti o baamu striker okunfa awọn tripping siseto ti STRO7-40 RCBO, ṣiṣe awọn ti o ni kiakia ge si pa awọn Circuit.

1.Thermal Magnetic Tripper: O nlo ooru ati aaye oofa ti ipilẹṣẹ nigbati lọwọlọwọ ba kọja nipasẹ olutọpa lati fa idalẹnu. Nigbati lọwọlọwọ ba ga ju, adaorin naa gbona ati ṣe ipilẹṣẹ aaye oofa kan, ti o nfa bimetal inu ẹrọ ikọlu oofa gbona lati tẹ tabi oofa lati fa mojuto irin, nitorinaa nfa siseto tripping.

2.Residual lọwọlọwọ oluwari: O nlo a odo lesese ti isiyi transformer lati ri awọn péye lọwọlọwọ ninu awọn Circuit. Nigbati lọwọlọwọ ti o ku ba ti kọja iloro ti a ṣeto, aṣawari lọwọlọwọ yoo fi ifihan agbara ranṣẹ si ẹrọ tripping lati ge Circuit kuro.

Awọn ẹya ara ẹrọ ti STRO1-40 RCBO

Isọpọ iṣẹ-ọpọlọpọ: STRO1-40 RCBO ṣepọ apọju, kukuru-yika ati awọn iṣẹ aabo jijo, simplifying awọn apẹrẹ ati fifi sori ẹrọ ti awọn eto itanna.

Ifamọ giga: STRO1-40 RCBOs le rii ni kiakia ati ge awọn iṣan aiṣedeede ati iyokù ninu Circuit, pese aabo igbẹkẹle.

Rọrun lati fi sori ẹrọ ati ṣetọju: STRO1-40 RCBOs nigbagbogbo jẹ modularized fun fifi sori ẹrọ rọrun ati itọju.

Ailewu giga: STRO1-40 RCBOs ni idanwo lile ati ifọwọsi fun aabo giga ati igbẹkẹle lati rii daju iṣẹ ailewu ti awọn ọna itanna.

Awọn oju iṣẹlẹ elo ti STRO1-40 RCBO

Awọn STRO1-40 RCBOs ni lilo pupọ ni awọn eto itanna ni ibugbe, iṣowo ati awọn apa ile-iṣẹ, ni pataki awọn ti o nilo apọju igbakanna, Circuit kukuru ati aabo jijo ilẹ. Wọn nigbagbogbo fi sori ẹrọ ni awọn apoti pinpin, awọn apoti iyipada tabi awọn apoti ohun elo iṣakoso lati daabobo awọn iyika ati ohun elo lati ibajẹ ti o ṣẹlẹ nipasẹ lọwọlọwọ ajeji ati foliteji, ati lati yago fun itanna.
