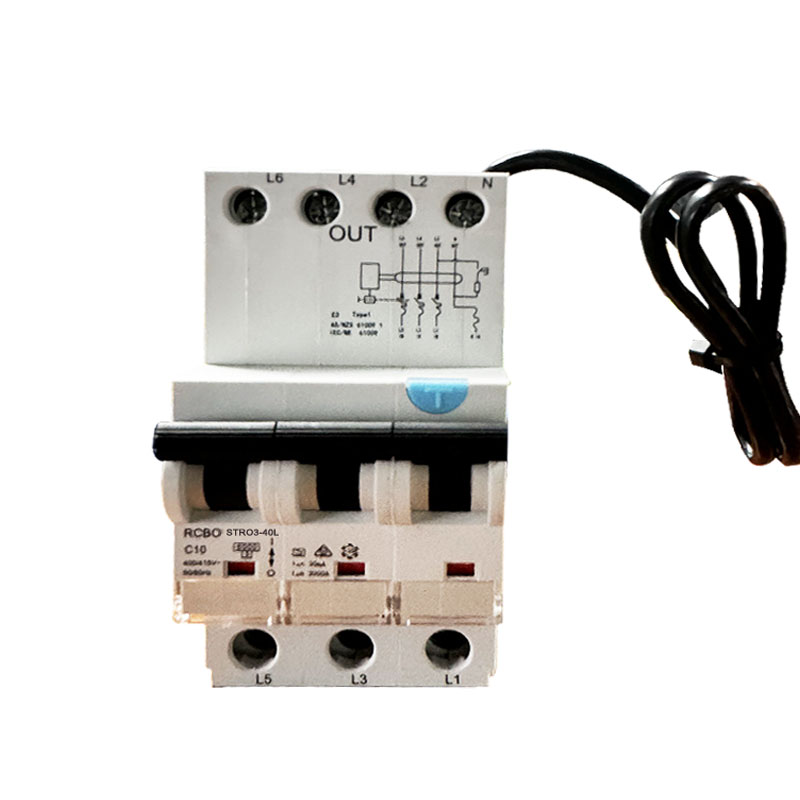

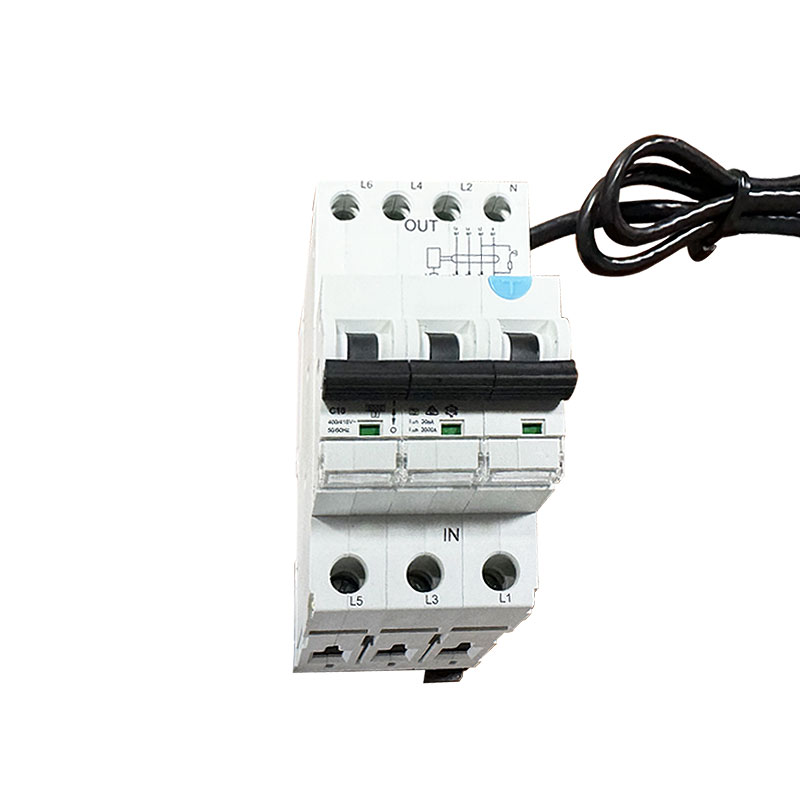

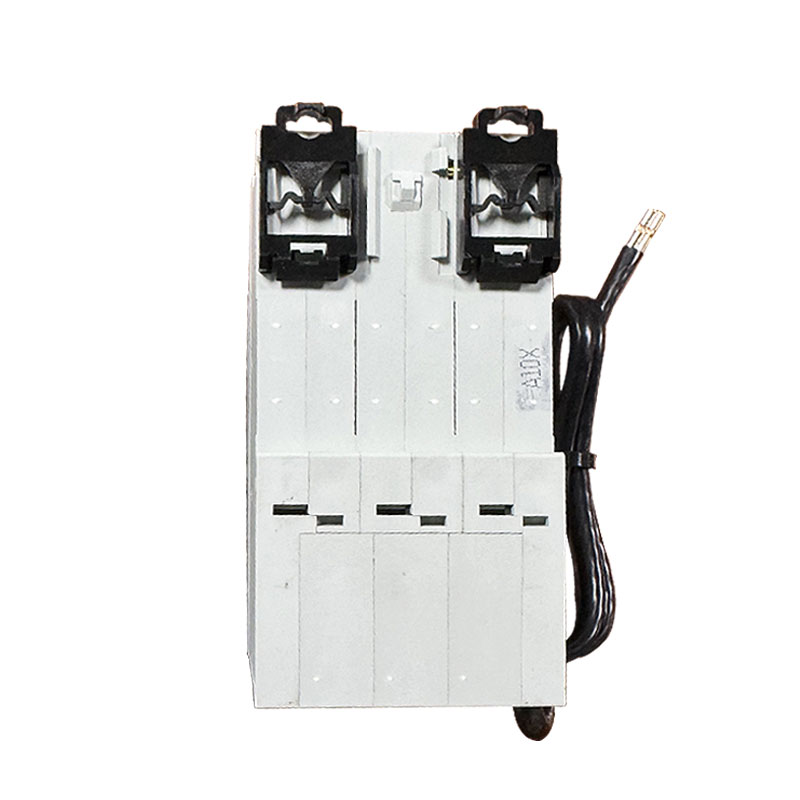

6ka 3p + N Leakage Circuit Breaker a (AC) Iru RCBO pẹlu Cable
  • 6ka 3p + N Leakage Circuit Breaker a (AC) Iru RCBO pẹlu Cable6ka 3p + N Leakage Circuit Breaker a (AC) Iru RCBO pẹlu Cable
  • 6ka 3p + N Leakage Circuit Breaker a (AC) Iru RCBO pẹlu Cable6ka 3p + N Leakage Circuit Breaker a (AC) Iru RCBO pẹlu Cable
  • 6ka 3p + N Leakage Circuit Breaker a (AC) Iru RCBO pẹlu Cable6ka 3p + N Leakage Circuit Breaker a (AC) Iru RCBO pẹlu Cable
  • 6ka 3p + N Leakage Circuit Breaker a (AC) Iru RCBO pẹlu Cable6ka 3p + N Leakage Circuit Breaker a (AC) Iru RCBO pẹlu Cable
  • 6ka 3p + N Leakage Circuit Breaker a (AC) Iru RCBO pẹlu Cable6ka 3p + N Leakage Circuit Breaker a (AC) Iru RCBO pẹlu Cable

6ka 3p + N Leakage Circuit Breaker a (AC) Iru RCBO pẹlu Cable

SONTUOEC jẹ ọkan ninu awọn olupese / awọn olupese ti Ilu Kannada ti o ṣe amọja ni iṣelọpọ ti awọn oriṣiriṣi awọn ohun elo itanna kekere 6ka 3P + N Leakage Circuit Breaker a (AC) Iru RCBO pẹlu Cable ti a lo ni AC 50Hz (60Hz), foliteji ti o ni iwọn 110/220V, 120/240V ti o wa ni iwọn kekere si eto 40V A ti o ni agbara lọwọlọwọ. RCBO STRO3-40L jẹ dogba pẹlu iṣẹ MCB + RCD; O ti lo fun aabo mọnamọna ina ati aabo olubasọrọ aiṣe-taara eniyan, aabo ohun elo itanna nigbati ara eniyan ba fọwọkan ina tabi nẹtiwọọki nẹtiwọọki lọwọlọwọ ju iye ti a ti pinnu, ati lori fifuye ati aabo Circuit kukuru.

Awoṣe:STRO3-40L

Fi ibeere ranṣẹ

ọja Apejuwe

Awọn alaye imọ-ẹrọ:


Sandard IEC / EN61009-1
Itanna awọn ẹya ara ẹrọ Iru (igbi fọọmu ti jijo ilẹ ni oye) Electro-oofa iru
Ti won won lọwọlọwọ Ni A A,AC
Awọn ọpá P (1P+N)
Ti won won foliteji V 110/220,120V
Ti won won Lọwọlọwọ: 6,10,16,20,25,32,40A
Ti won won ifamọ I△n A 0.01,0.03,0.1
Foliteji idabobo Ui V 500
Ti won won péye sise ati A 500
agbara fifọ I△m
I△C ti n lọ kiri-kukuru A 6000
SCPD fiusi A
6000, 10000A
BitmapBitmapBitmapBitmap




Iwọn igbohunsafẹfẹ Hz 50/60
Idoti ìyí 2
Darí awọn ẹya ara ẹrọ Itanna igbesi aye t 4000
Igbesi aye ẹrọ t 4000
Idaabobo ìyí IP20
Ibaramu otutu ºC -5 ~ + 40 (Ohun elo pataki jọwọ tọka si atunṣe iwọn otutu)
(pẹlu apapọ ojoojumọ ≤35ºC)
Ibi ipamọ otutu ºC -25 ~ +70
Fifi sori ẹrọ Ebute asopọ iru USB / U-iru busbar / pin-Iru busbar
Ebute iwọn oke / isalẹ fun USB mm2 16
AWG 18-5
Ebute iwọn oke / isalẹ fun akero mm2 16
AWG 18-5
Tightening iyipo N*m 2
Ni-lbs 18
Iṣagbesori Tan-an DIN iṣinipopada EN 60715 (35mm) nipasẹ ẹrọ agekuru yara
Asopọmọra Lati oke ati isalẹ

Akọkọ Awọn ẹya ara ẹrọ ati Awọn iṣẹ

Idaabobo lọwọlọwọ lọwọlọwọ: Nigbati lọwọlọwọ lọwọlọwọ (ie, lọwọlọwọ jijo) ninu Circuit de iye tito tẹlẹ, RCBO ni anfani lati ṣiṣẹ ni iyara lati ge iyika naa, nitorinaa idilọwọ awọn ijamba itanna ati awọn ina ina.

Idaabobo Apọju: Nigbati lọwọlọwọ ti o wa ninu Circuit ba kọja iwọn lọwọlọwọ ti RCBO, o ni anfani lati ge Circuit kuro laarin akoko kan pato, nitorinaa idilọwọ ibajẹ si Circuit tabi awọn ijamba ina ti o ṣẹlẹ nipasẹ apọju.

Idaabobo kukuru-kukuru: Nigba ti kukuru kukuru ba waye ninu Circuit, RCBO le ṣe ni kiakia lati ge kukuru-yika lọwọlọwọ ati daabobo aabo ti Circuit ati ẹrọ.

Awọn abuda itusilẹ iru B: Gẹgẹbi a ti mẹnuba loke, awọn RCBO-Iru B jẹ pataki ni pataki fun awọn ẹru ti ko ni ifarabalẹ si awọn apọju lojukanna, ṣugbọn ifarabalẹ si awọn ẹru gigun.



Awọn oju iṣẹlẹ elo

6ka 3p+N Leakage Circuit Breaker a (AC) Iru RCBO pẹlu Cable jẹ lilo pupọ ni awọn aaye nibiti ọpọlọpọ awọn iṣẹ aabo iyika ti nilo, paapaa awọn iyika ti o lo awọn ẹru pẹlu awọn ibeere pataki fun awọn abuda apọju. Apeere:


Ibugbe ati awọn ile iṣowo: ti a lo lati daabobo awọn iyika ina, awọn iyika iho, ati bẹbẹ lọ lati rii daju aabo ti ara ẹni ati aabo ohun elo.


Awọn aaye ile-iṣẹ: fun aabo awọn ohun elo ile-iṣẹ lọpọlọpọ, gẹgẹbi awọn igbona resistance, awọn atupa ina, ati bẹbẹ lọ, lati yago fun ibajẹ ohun elo tabi awọn ijamba ina ti o fa nipasẹ apọju tabi jijo.


Ogbin ati horticulture: ti a lo lati daabobo awọn ohun elo ogbin gẹgẹbi awọn eefin, awọn ọna irigeson, ati bẹbẹ lọ, lati rii daju iṣẹ deede ti ẹrọ ati aabo awọn oṣiṣẹ.



Awọn iṣọra ati Itọju

Aṣayan ti o tọ ti lọwọlọwọ ti o ni iwọn: Nigbati o ba yan 6ka 3p+N Leakage Circuit Breaker a (AC) Iru RCBO pẹlu Cable , iye ti o yẹ lọwọlọwọ yẹ ki o yan da lori lọwọlọwọ ti wọn ṣe ati awọn abuda fifuye naa.

Ayewo Igbakọọkan ati Itọju: Lokọọkan ṣayẹwo ati ṣetọju RCBO lati rii daju pe o nṣiṣẹ ni igbẹkẹle, ti firanṣẹ ni aabo, ati pe ko ni ibajẹ tabi ibajẹ.

Yago fun iṣẹ eke: Nigbati o ba nfi sori ẹrọ ati lilo, o yẹ ki o ṣe itọju lati yago fun fifi sori ẹrọ RCBO ni agbegbe ti o ni ifaragba si kikọlu lati yago fun iṣẹ eke rẹ.

Mimu awọn ašiše ni akoko: Nigbati RCBO ba kuna tabi nṣiṣẹ, o yẹ ki o mọ idi naa ati laasigbotitusita yẹ ki o ṣee ṣe ni akoko lati rii daju iṣẹ ailewu ti Circuit naa.




Gbona Tags: 6ka 3p + N Leakage Circuit Breaker a (AC) Iru RCBO pẹlu Cable
